Product Parameters
Type | Decorative stainless steel sheets |
Thickness | 0.3 mm – 3.0 mm |
Size | 1000*2000mm, 1219*2438mm, 1219*3048mm, customized Max.width 1500mm |
SS Grade | 304,316, 201,430 etc. |
Finish | mirror+etched finished+gold |
Available finishes | No.4, Hairline, Mirror, Etching, PVD Color, Embossed, Vibration, Sandblast, Combination, lamination etc. |
Origin | POSCO,JISCO,TISCO,LISCO,BAOSTEEL etc. |
Packing way | PVC+ waterproof paper + strong sea-worthy wooden package |
Chemical composition and mechanical properties of stainless steel coils | |||||||||
Grade | Chemical Composition (%) | Mechanieal Performece | |||||||
C | Si | Mn | P | S | Ni | Cr | Mo | Hardness | |
201 | ≤0.15 | ≤1.00 | 5.5/7.5 | ≤0.060 | ≤0.030 | 3.5/5.5 | 16.0/18.0 | – | HB≤241,HRB≤100, HV≤240 |
304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0/11.0 | 18.00/20.00 | – | HB≤187,HRB≤90,HV≤200 |
316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.030 | ≤0.060 | 11.5/13.5 | – | HB≤183, HRB≤88 HV≤200 |
430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | – | 16.00/18.00 | – | HB≤183, HRB≤88 HV≤200 |

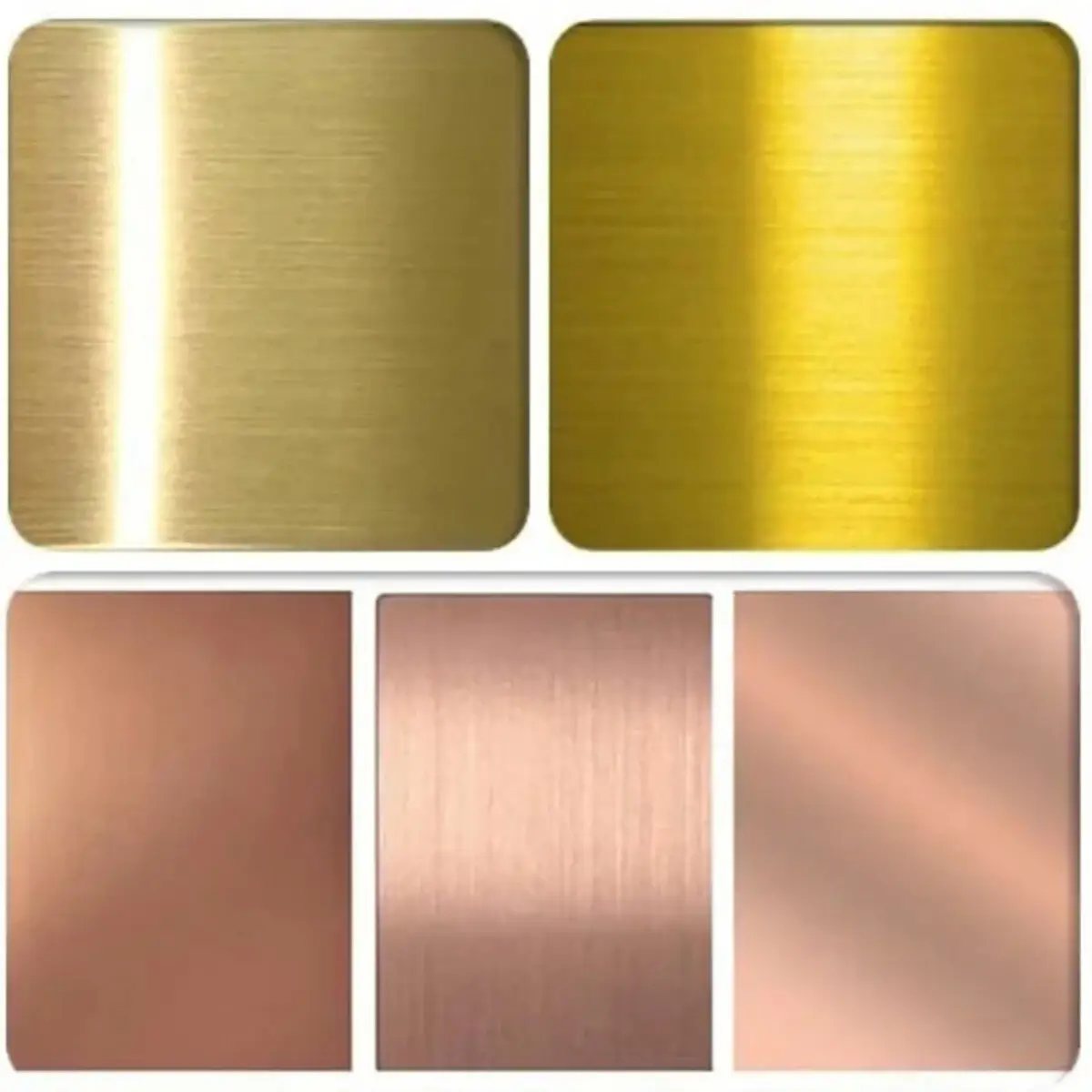

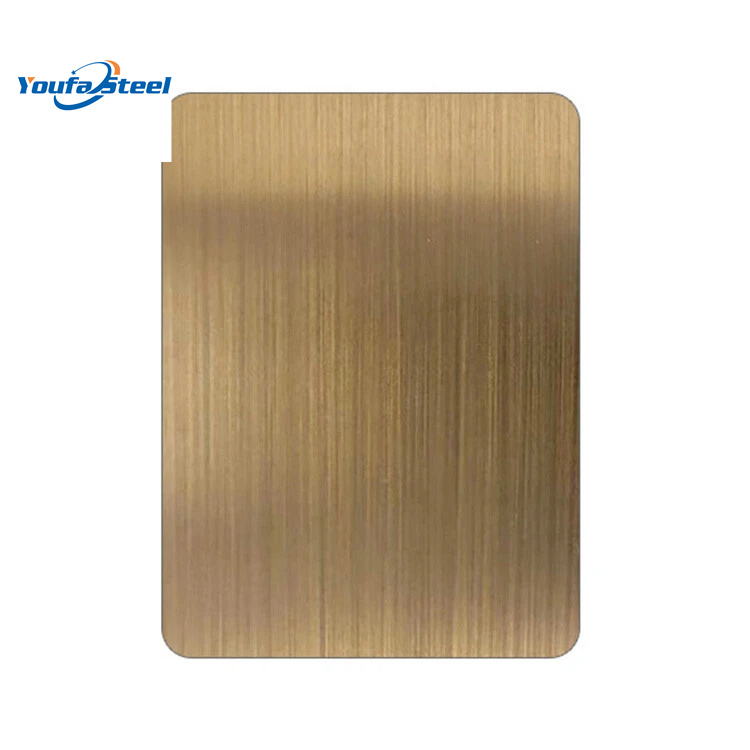

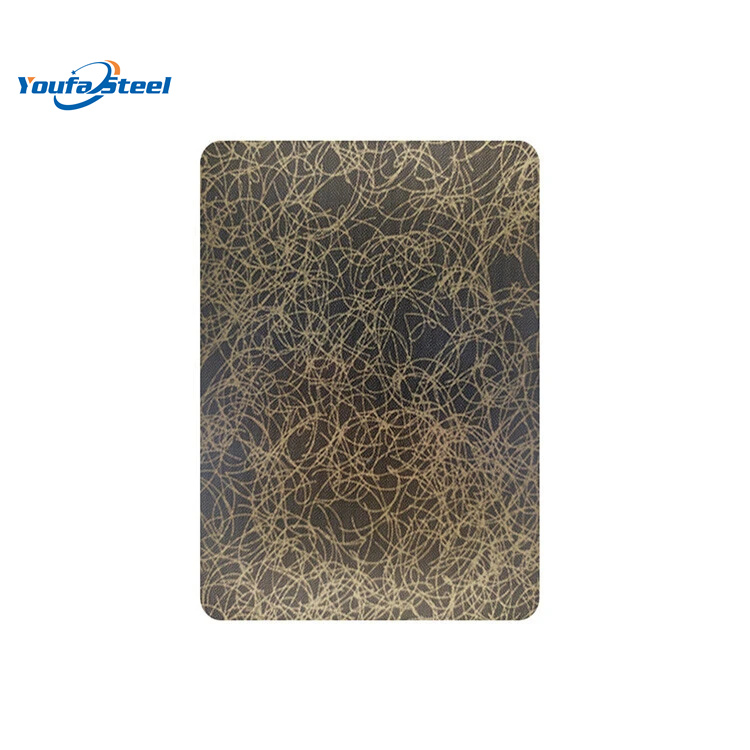

Product Display
